Created with Pixso. 12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing

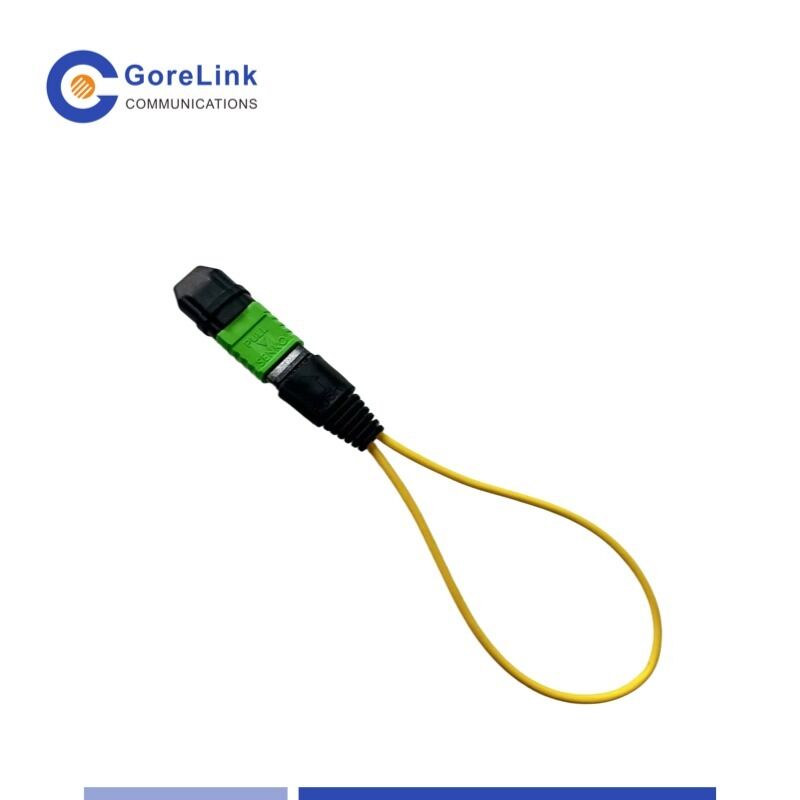

12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing

브랜드 이름: GoreLink
모델 번호: G4431
MOQ: 1PC
배달 시간: 1-3 영업일
지불 조건: T/T, 웨스턴 유니온, 페이팔
상세 정보
원래 장소:
중국
제품:
MPO SM 광섬유 루프백 모듈
특징:
고속 광 네트워크 테스트에 적합
부품 번호:
GL-MLB-12SMF
커넥터 유형:
MPO/APC 여성
섬유 종류:
단일 모드
색상:
녹색
삽입 손실:
≤0.35dB
작동 온도:
-20~+75°C
보관 온도:
-40~+85℃
포장 세부 사항:
1 PC / 가방
강조하다:

12 fiber MPO/APC loopback module

,

single mode fiber loopback for QSFP

,

MPO/APC fiber testing tool

제품 설명
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP Testing
Overview
The MPO Fiber Loopback Module is engineered for comprehensive fiber optic network testing, signal routing, and transceiver verification in high-speed communication systems. This essential testing tool is widely deployed in data centers, telecommunication networks, and optical transmission systems to validate signal continuity and assess network performance.
Featuring high-quality MPO/MTP connectors and precision fiber alignment, this loopback module delivers stable optical performance with minimal insertion loss. It serves as an ideal solution for 40G/100G optical transceiver testing, switch verification, and comprehensive network diagnostics.
Applications
  • Data center cabling systems
  • 40G/100G transceiver testing
  • QSFP module verification
  • Optical switch testing
  • Telecom networks
  • Fiber optic diagnostics and maintenance
Key Features
  • MPO/MTP connector interface
  • Low insertion loss and stable performance
  • High-density fiber connectivity
  • Compact and durable design
  • Plug-and-play installation
  • Suitable for high-speed optical network testing
Technical Specifications
Fiber Loopback Type MPO loopback
Fiber Structure 12F
Fiber Mode Singlemode
Polish Type APC
Insertion Loss ≤0.35dB
Fiber Connector Female
Housing Color Green
Compliance Telcordia GR-326-CORE
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing 0
Documentation
Download Datasheet
Ordering Information
Part Number Description
GL-MLB-12SMF 12F SM MPO Loopback, Standard loss, Female
For further assistance, please contact us at sales@gorelink.com
